Product Description

https://kastdoor.diytrade.com/sdp/2955931/4/pd/21002860.html?mode=11

Hermetic ICU Automatic Sliding Door   ICU Automatic Sliding Door    Hermetic Automatic Sliding Door manufacturer



Application in observation room, ICU,CCU room, ICU hospital door adopt large flat and high strength tempered glass or STC grade glass and door frame made of 6063-T5 standard aluminum with fluorocarbon coating or 304SS matt finish; Exclusive hospital door control system to guarantee ICU door smooth and stable working.



ICU Automatic Sliding Door Introduction,

1. Door Panel

*A whole flat tempered glass,laminated glass,electric polarized glass
*Framed in anodized aluminum profiles with rounded edges in aluminum
2. Door frames&Silicone rubber seal gasket

*Frame and counter frame in aluminum profile with rounded edges or welded 304 stainless steel suit the hospital door
*Silicone ubber seal gasket are assembled round in the door frame and around the hospial door panel to promise airtightness in the operation room.
3.Door Handle

*304L stainless steel bar handle,painted steel or stainless steel flush pull handle
4.Automatic Door Operator
*"U" design anodized aluminum track with ramps
*Exclusive 24V brushless motor and controller to ensure the stable and smooth working.



Automatic hospital door Technical Datas,

Door model	Single open/double open
Door frame	Aluminum alloy (powder coating with any colors/staineless steel clading)
Door glass	Flat tempered glass/Laminated glass/electric polarized glass
Door panel thickness	45-48mm
Standard size	2100mm*1400mm
Max capacity	150KG
Open speed(adjustable)	150mm-500mm/s
close speed(adjustable)	100-450mm/s
Activation	foot sensor /hand sensor
Power supply	230VAC+10/-15%,50/60Hz
Working temperature	-20ºC to 50ºC
Airtightness standard	GB/ 7106-2008



KAST main supply Automatic Door and spare parts, which include Automatic Door Operator, electric door opener system. We use materials that comply with the strict quality controls to promise door automation stable operation.



https://www.kastdoor.com/product-hermetic-icu-automatic-sliding-doors.html



Other information you can also visit:

http://www.weblogworld.com

http://www.kjsmachcnc.es

http://www.textoblog.com

http://www.blogequipment.com

http://www.manufacturerblogger.com

http://www.infoblogdirect.com

http://www.weblatestnews.com

http://www.blog4evers.com

http://www.moreinformationblog.com

http://www.webmedicalblog.com

http://www.machblogger.ltd

Payment Terms︰ T/T

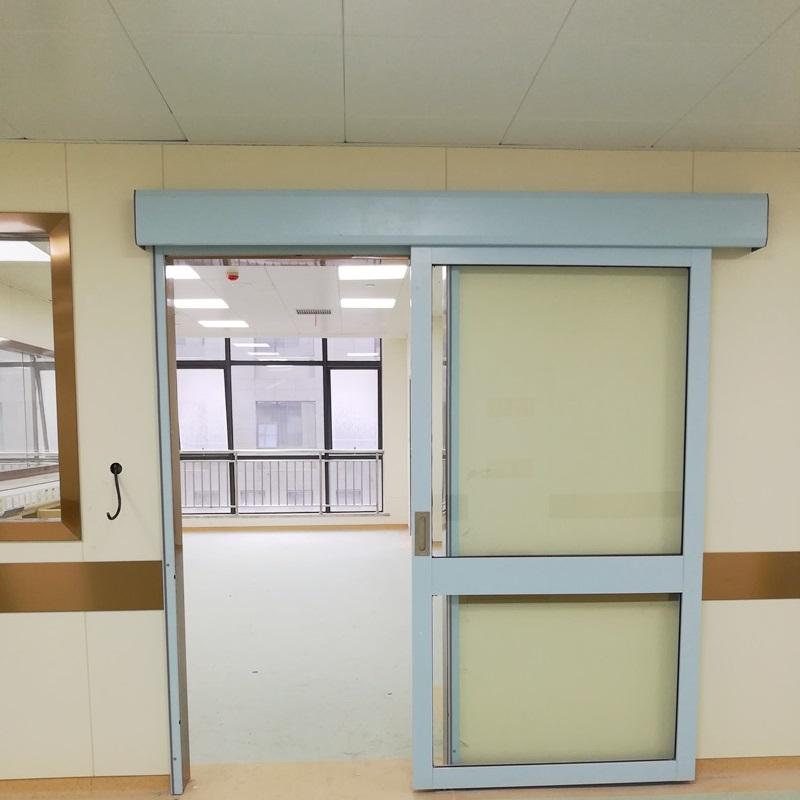

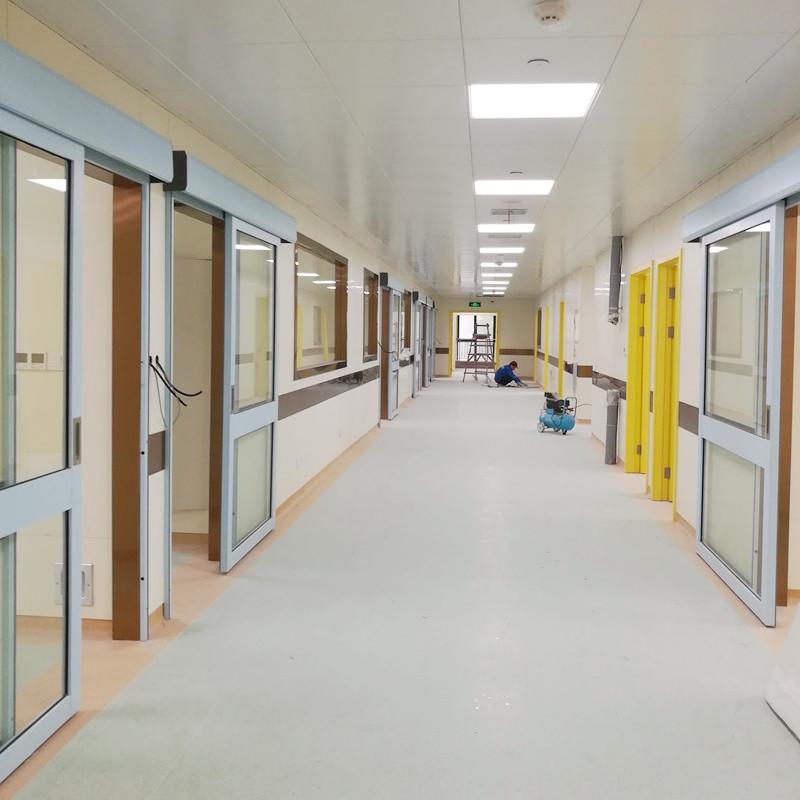

Product Image
