Industrial Automatic Sliding Gate Opener Automatic Gate Automatic Sliding Gate manufacturer
The series sliding gate opener are designed for automation of sliding gates up to a maximum weight of 3000kg -5000kg for industrial Use.The heavy structure of the gear motor, the painted galvanised steel casing and the on-board control unit make it the ideal solution for all industrial situations where reliability and power are essential.They have a modern design, suitable for any environment.
Door Features,

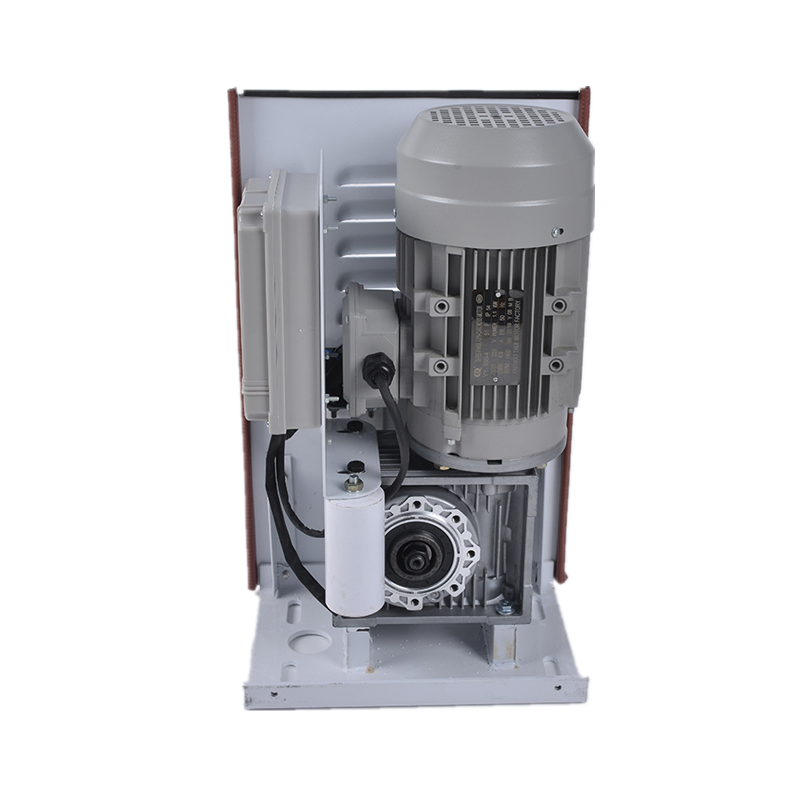

*3 phase 380W AC motor with built-in control unit
*Keypad/single button interface
*Alarm lamp, photo beam and safety beam terminal
*User can select auto-close function
*Soft start and slow stop
*Auto-reverse function when hitting obstacle during closing
*Manual key release design for emergency power failure
*Overheating protector. When the motor temperature reaches the rated value, it will automatically power-off and protect the motor
Gate Working,
KAST automatic sliding gate opener works with two phase AC 230V or 3 phase 380V voltagage power, design especially for large gate.Controller terminal with wireless access control keypad, alarm lamp, remote controller,safety beam sensor, and has WIFI switch for u to choose.
Industrial Automatic Sliding Gate Opener Technical Datas,
|
Model
|
KPS12003
|
KPS15005
|
|
Power supply
|
AC120V~230V,50H/60Hz
|
380V AC,50hz
|
|
Motor power
|
1200W
|
1500W
|
|
Controller
|
Frequency converter
|
Frequency converter
|
|
Gate moving speed
|
12m/min
|
18m/min
|
|
Output torque
|
27N.m
|
38N.m
|
|
Max gate weight
|
3000Kg
|
5000Kg
|
|
Remote control Frequency
|
Rolling code / 433.92MHz
|
|
Limit switch
|
Mechanical limited switch
|
|
Noise
|
≤60dB
|
|
Thermal protection
|
130ºC
|
|
Working temperature
|
-20°C~50°C
|
|
Package weight
|
53Kg
|
|
IP protection
|
IP44
|
The automatic sliding gate opener has a modern design, suitable for any environment, which are designed for automation of sliding gates up to a maximum weight of 3000kg -5000kg for industrial use.
