Fail Safe Electric Bolt Lock china Electric Bolt Lock company Fail Safe Electric Drop Bolt Lock

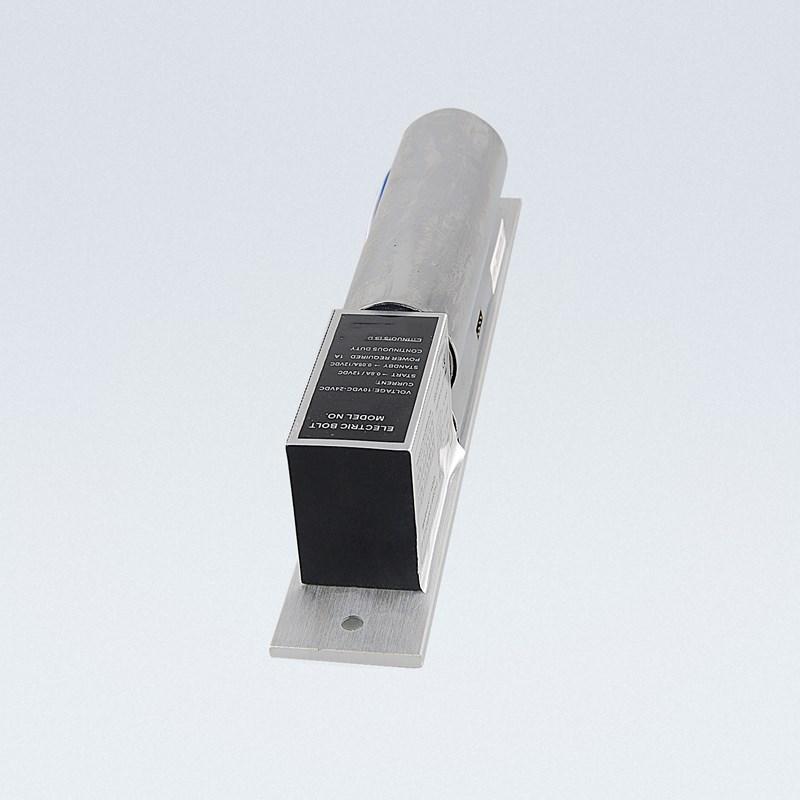

KB200 is a simple fail security electric drop bolt lock with LED indicator for glass door, wood door and metal door. It is made of high strenght aluminum alloy. Working with 12~24VDC power with 5 wires. It adopt the advanced Photoelectricity Control Technology to prevent the machanical defect.
Fail Safe Electric Drop Bolt Lock Features,
*The Photoelectricity Control Technology,prevent the machanical defect.
*Built-in reverse current and prevention device (MOV).
*High strength aluminum alloy lock body, stainless steel lock bolt.
*Low temperature design, Safer and more durable.
*With time delay(0.3.6.9seconds optional) ,LED indicator signal output(NO/NC/COM) function
*Opening mode: 180-degree swinging door
KAST-Electric Bolt Lock Technical Datas,
|
Feature
|
Fail Safe
|
|
Face Plate
|
204Lx35WX41H(mm)
|
|
Voltage
|
12~24VDC
|
|
Start Current
|
800mA
|
|
Standby Current
|
110mA
|
|
Solid Bolt
|
polishing housing, 1000Kg Holding Force
|
|
Suitable For
|
Wooden Door,Glass Door,Metal Door
|
|
Autolock Time Delay
|
0,3,6,9sec
|
|
Signal Output
|
Door status Output,NO/COM
|
|
Surface Temp
|
Low Temperature
|
|
Surface Temp
|
5~10mm
|
|
Operating Temperature
|
0～+50℃
|
|
Operating Humidity
|
20%～90%
|
|
Special Designed
|
Tested to 500000 operations
|
|
Weight
|
0.55kg
|
KB200 electric bolt lock is a simple fail security electric drop bolt lock, which is made of high strength aluminum alloy. And it adopts the advanced photoelectricity control technology to prevent the mechanical defect.
Click here to learn more.
